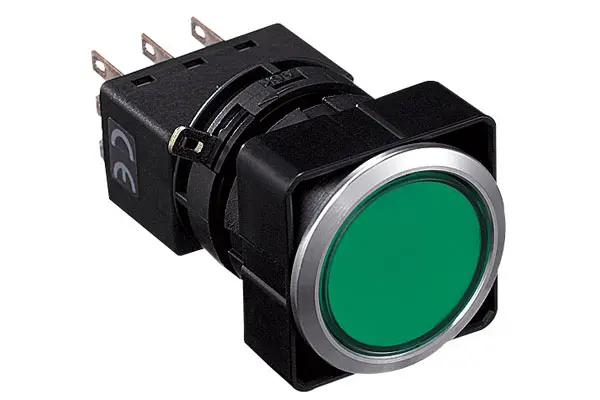

Image non contractuelle - consultez les spécifications du fabricant

LW6ML-M1C24MG

Name: LW6ML-M1C24MG
Brand: Idec Corporation
SKU: 11581696
Price: 101.36 USD
Availability: OutOfStock

IDEC Corporation

Switch Push Button N.O./N.C. DPDT Flush Round Button 0.1A 250VAC 250VDC Momentary Contact Screw Panel Mount ...

Fiche technique

RoHS Compliant

Garantie du certificat de conformité

DESCRIPTION

The LW6ML-M1C24MG is an LED-illuminated round flush momentary pushbutton switch from IDEC's LW Series oiltight switches and pilot devices. It features a metal bezel with gold-clad silver contacts in a 3PDT (triple-pole double-throw) configuration, rated for 24V AC/DC operation with a voltage range of 24V AC/DC ±10%. The integrated LED lamp (LSTD series) provides visual indication and operates at the specified 24V rating with an approximate lifespan of 50,000 hours. The device offers PC board solder/tab terminal mounting and is designed for collective mounting with a minimal 2 mm bezel projection from the panel front. It meets IP65 protection rating per IEC 60529 and is UL recognized and CSA certified with EN compliance, making it suitable for industrial control panels, machinery interfaces, and process automation applications requiring reliable visual feedback and switching capability.

Points forts du produit:

Potential Applications:

Search Keywords: LW6MLM1C24MG

SPÉCIFICATION

Attribut du produit

Valeur de l'attribut

Sélectionner un attribut

Produits trouvés : 0

fournisseur:

IDEC Corporation

Référence:

LW6ML-M1C24MG

Unité de mesure:

Par Each

RoHS:

Yes

HTS:

8536507000

COO:

ECCN:

EAR99

Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
