030-8587-000 by itt cannon

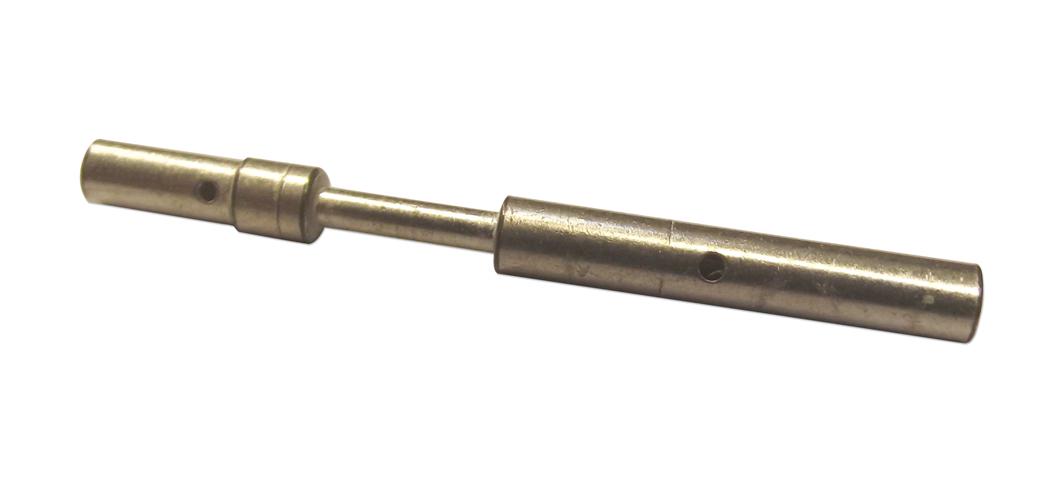

Image is representational - see mfr. specs

030-8587-000

ITT CANNON

Contact PIN 15 Size Crimp ST ...

Fiche technique
RoHS Compliant
Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

030-8587-000 is a pin contact designed for use in electrical connectors, specifically in the 15/16 contact size category. It accommodates wire sizes of 0.75–1.5 mm² (AWG 18/16) and features a standard A36 finish with 5 µm silver plating and passivation for corrosion resistance. The contact has a nominal diameter (d0) of 1.6 mm, a barrel diameter (d4) of 1.75 mm, and a crimp depth (d8) of 1.75 mm with a tolerance of +0.08 mm. With an overall length of 31.4 mm and a contact length of 7.9 mm, this contact is suitable for high-reliability connector applications in industrial, aerospace, and telecommunications equipment where secure electrical connections and durability are essential.

Search Keywords: 0308587000

SPÉCIFICATION

Product Attribute
Attribute Value
Select Attribute
Products found: 0
fournisseur:
ITT CANNON
Référence:
030-8587-000
Unité de mesure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Contact Type:
Signal
Gender:
Pin
Contact Size:
15
Wire Size:
N/A
Contact Material:
Copper Alloy
Contact Plating:
Silver
Maximum Current Rating:
22 A
Termination Method:
Crimp

EN STOCK: 3,283

Peut être expédié immédiatement

Commande min Quantitè: 25

DÉLAI DE L'USINE 13 Weeks

PRICE (USD)

QTÉ
Prix unitaire
25
$0.5226
250
$0.4172
500
$0.3967
1 000
$0.3735
2 500
$0.3457
5 000
$0.3439
7 500
$0.3423
10 000 +
$0.3405
Log in for special pricing Click for Quote Price Match Request
