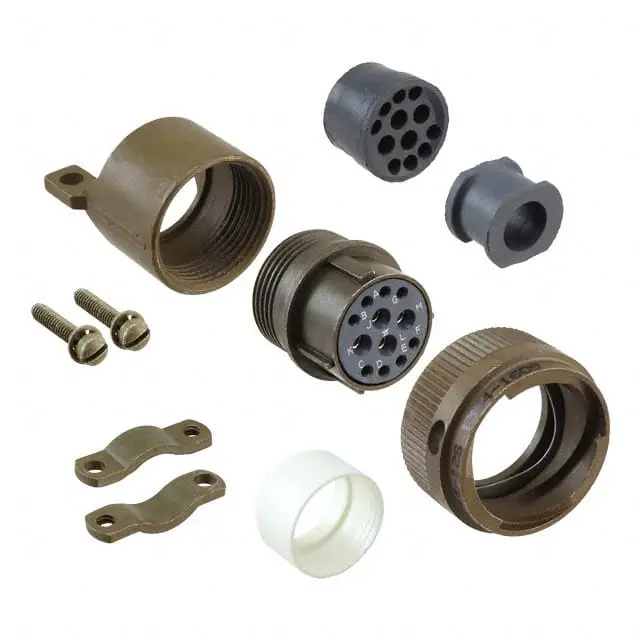

Name: 045704-0004
Brand: Itt Cannon
SKU: 10829057
Price: 151.68 USD
Availability: InStock

Produits trouvés : 0

fournisseur:

ITT CANNON

Référence:

045704-0004

Alias/également connu sous:

KPT06F14-12S

Unité de mesure:

Par Each

RoHS:

Yes

HTS:

8536694020

COO:

PL

ECCN:

EAR99

Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

1

Matériau de la coque:

Aluminium alloy

Placage de la coque:

Olive drab chromate over cadmium plating

Nombre de contacts:

8 contacts size 20, 4 contacts size 16

Étanchéité À L'Eau:

Acc. To VG95319 Part 2, Test No. 5.9.2

Disposition des contacts:

14-12

Info de câblage : section du contact:

See assembly instruction

Informations générales:

All tests in accordance with VG95319 and/or if applicable with VG95210

Matériau de l'isolant et du passe-fil:

Polychloroprene

Genre:

Socket

Dispositions de sécurité:

IP67 acc. to DIN 40 050 (0,2 bar pressure over 48 hrs)

Type de coque:

Straight Plug

Tension d'essai:

1500 Vrms

Résistance de l'isolant:

≈5000 MOhm

Cycles d'Accouplement:

500 min

Calibre Du Contact AWG20:

7,5 A

Type de capot d'extrémité:

Grommet seal with strain relief

Vibration:

200 m/s² at 10 to 2000 Hz

Info de câblage : diamètre de l'isolant:

See assembly instruction

Matériau du contact:

Copper Alloy

Avertissement:

Our facility is not currently certified by the DLA and this product is not covered by the QPL/QML.

Tension de fonctionnement:

In case of voltages greater than 50V the connector must be used in accordance with DIN VDE part 410, IEC 60364-4-41.

Placage des contacts:

Size 12 & 16: gold plated Size 20: Contact body: tin / Contact area: gold plated

Taille de la coque:

14

Calibre Du Contact AWG16:

13,0 A

Type de contact:

Solder Cup

Température de fonctionnement:

-55°/+125°C (-67/257°F)
