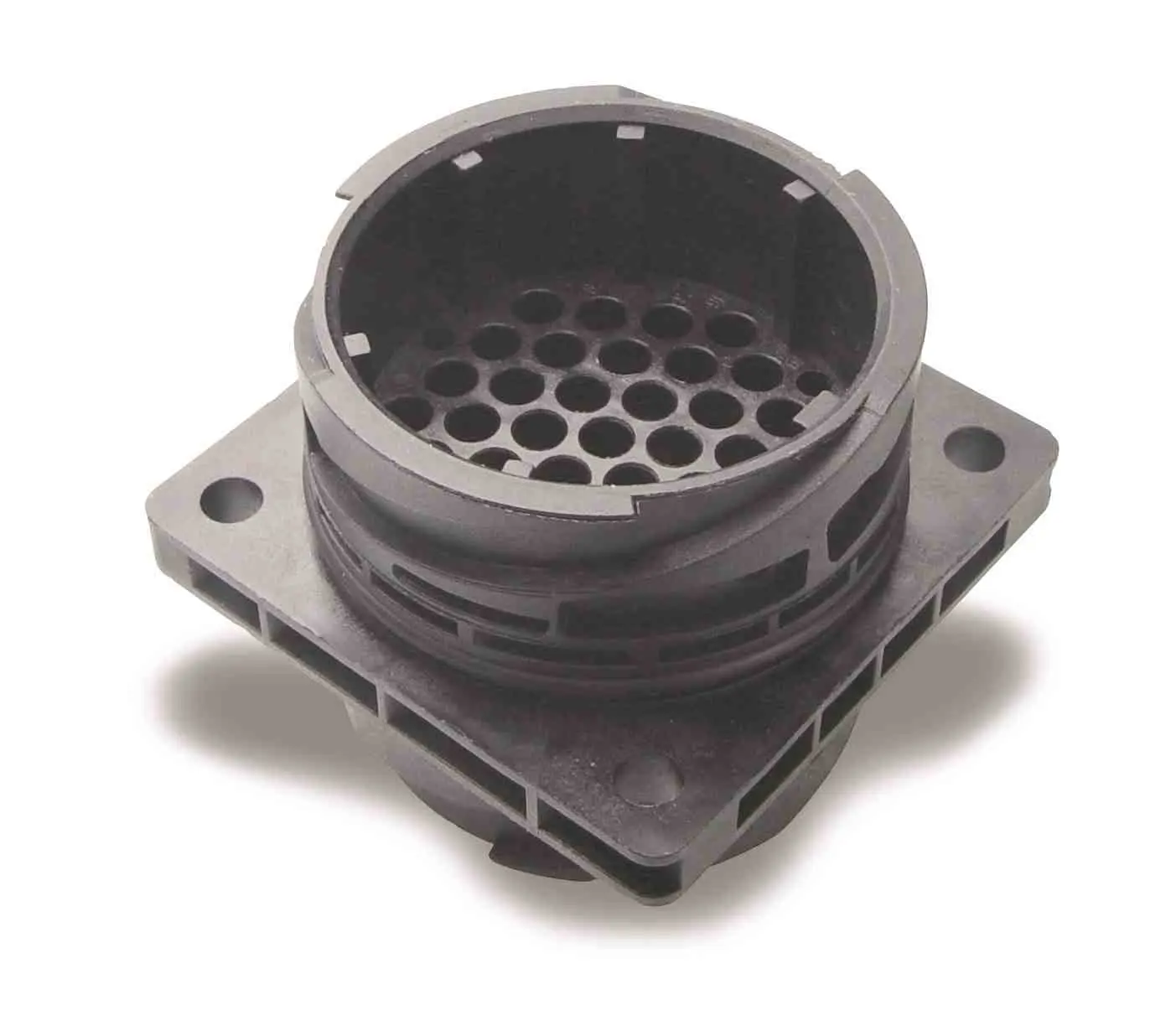

APD-1AP37 by itt cannon
Image is representational - see mfr. specs

APD-1AP37

ITT CANNON

Flange Receptacle, 37-way Black without O-ring ...

Fiche technique
RoHS Compliant
Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

248-8653-026 is an APD 37-way flange receptacle connector designed for transportation applications requiring robust electrical connectivity. The connector features a pin gender configuration with Code 1 black mechanical keying (RAL 9005) and operates at 48 VDC with a maximum contact resistance of 5 mO. It is rated for 1000 VAC voltage proof over 60 seconds and maintains an insulation resistance of 10 MO minimum, with a temperature operating range of -40°C to 125°C and humidity tolerance up to 95% relative humidity. The connector is constructed from PA 66 GF housing with FKM sealing material, achieving IP 67 + IP 69k sealing protection and demonstrating excellent durability through 20 mating cycles and resistance to salt spray, industrial climate, and fluid compatibility with brake fluid, ATF, and fuel. This makes it ideal for harsh automotive and industrial environments where reliable, sealed connections are essential.

Search Keywords: APD1AP37

SPÉCIFICATION

Product Attribute
Attribute Value
Select Attribute
Products found: 0
fournisseur:
ITT CANNON
Référence:
APD-1AP37
Alias/AKA:
248-8653-026
Unité de mesure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
DE
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Mounting:
Flange Mount
Body Orientation:
N/A
Gender:
RCP
Number of Contacts:
37
Maximum Voltage Rating:
48 VDC
Maximum Current Rating:
N/A
Operating Temperature:
-40 to 125 °C

EN STOCK: 90

Peut être expédié immédiatement

Quantité minimale de commande pour qté en rupture de stock: 25

DÉLAI DE L'USINE 22 Weeks

PRICE (USD)

QTÉ
Prix unitaire
1
$36.88
5
$36.79
10
$36.70
25
$36.61
50
$22.53
75
$17.84
100 +
$17.48
Emballage standard du fournisseur
