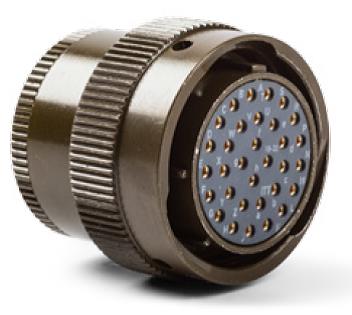

KPSE06E16-8S
MIL Series Circular Connector - Straight Plug - Shell 16 - 8 Contacts - Crimp Sockets Supplied - Aluminum Alloy ...
DESCRIPTION
065031-0002 is a KPT/KPSE/KPTC circular connector manufactured by ITT Cannon for harsh-environment interconnect applications. The connector operates at Service Class 1 with 140 VDC/100 VAC or Service Class 2 with 165 VDC/115 VAC, featuring an insulation resistance of approximately 5000 MO. Minimum air and creepage paths are specified as 1.9 mm (contact-to-contact crimp) and 1.0 mm (contact-to-shell) for Service Class 1, with larger spacing for Service Class 2. The connector supports multiple shell sizes ranging from KPT-15-8A to KPT-15-24A with corresponding dimensional specifications, and accommodates contact sizes 12, 16, and 20 with conductor dimensions from 0.2 to 2.0 mm². These connectors are fully intermateable with MIL-DTL-26482 Series I standards and are ideal for aerospace, defense, medical, industrial, and transportation applications requiring reliable power and signal transmission in demanding environments.
Mots-clés de recherche: KPSE06E168S
SPÉCIFICATIONS
EN STOCK: 27
Peut être expédié immédiatement
Quantité minimale de commande pour qté en rupture de stock: 13
DÉLAI DE L'USINE 21 Semaines
Fiche technique
Learn more about ITT Cannon High-Density KP Series Connectors
