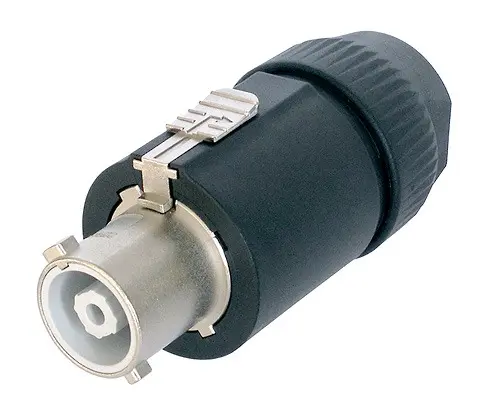

NAC3FC-HC by neutrik
Image non contractuelle - consultez les spécifications du fabricant

NAC3FC-HC

NEUTRIK

powerCON 32 A - powerCON 32 A cable connector The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system ...

Fiche technique
RoHS Compliant
Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Garantie du certificat de conformité

DESCRIPTION

The NAC3FC-HC is powerCON 32 A cable connector The NAC3FC-HC has rated voltage of 250 V ac and rated current per contact of 32 A (30A for cUL) and dielectric strength of 4 kVdc / 2.8 kVac. The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V.

Points forts du produit:

  • 250 V ac, 32 Amp single-phase (for ambient temperatures up to 35°C)
  • Premating contact for protective earth
  • Fast and easy locking system to prevent unintentional disengagement
  • Cable O.D. Range: 8 - 20 mm
  • Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10)
  • Excellent cable handling and protection
  • Extremely robust and reliable
  • VDE, UL, cUL and JET approved

Search Keywords: NAC3FCHC

SPÉCIFICATION

Attribut du produit
Valeur de l'attribut
Sélectionner un attribut
Produits trouvés : 0
fournisseur:
NEUTRIK
Référence:
NAC3FC-HC
Unité de mesure:
Par Each
RoHS:
Yes
HTS:
8536694020
COO:
HU
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Type:
Circular
Orientation du corps:
Straight
Montage:
Cable Mount
Genre:
PL
Nombre de contacts:
3
Méthode de terminaison:
Solder
Tension maximale nominale:
250 VAC
Courant nominal maximal:
32/Contact A
Température de fonctionnement:
N/A

EN STOCK: 322

Peut être expédié immédiatement

Manufacturer Stock: 375   Peut expédier 7/24/26

DÉLAI DE L'USINE 3 Weeks Peut expédier 8/3/26

Prix (USD)

QTÉ
Prix unitaire
1
$50.38
5
$33.54
10
$28.22
25
$26.19
50
$24.95
100
$23.75
250 +
$22.27
Emballage standard du fournisseur
