2800567 by phoenix contact
Image is representational - see mfr. specs

2800567

Phoenix Contact

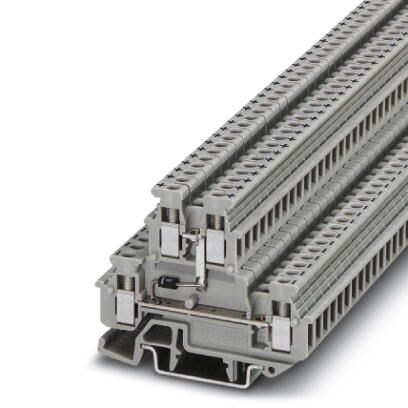

The 2800567 is a mini feed-through terminal block with an integrated diode and screw connections for DIN rail mounting. ...

Fiche technique
RoHS Compliant
Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 2800567 is a two-level mini feed-through terminal block designed for various switching tasks. It is rated for a nominal voltage of 500 V and a nominal current of 24 A, accepting conductor cross-sections from 0.2 mm² to 4 mm² (24-12 AWG) via screw connections. The block contains an integrated 1N 4007 diode, which has a reverse voltage of 1300 V and limits the maximum continuous current to 0.5 A. Its compact 5.2 mm width and compatibility with multiple DIN rail types make it a space-saving solution for control cabinets and distribution boards.

Search Keywords: 2800567

SPÉCIFICATION

Product Attribute
Attribute Value
Select Attribute
Products found: 0
fournisseur:
Phoenix Contact
Référence:
2800567
Alias/AKA:
2800567
Unité de mesure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
PL
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Gender:
F
Housing Material:
Polyamide
Family:
2800567
Maximum Current Rating:
24 A
Contact Plating:
N/A
Dimension:
62mm x 5.2mm x 55.5 mm
Contact Material:
N/A
Housing Color:
Gray
Body Orientation:
N/A
  Possible Replacement options available.  See Alternatives

EN STOCK: 35

Peut être expédié immédiatement

sur commande: 25   Peut expédier 5/22/26
sur commande: 100   Peut expédier 6/26/26

Commande min Quantitè: 2

DÉLAI DE L'USINE 8 Weeks

PRICE (USD)

QTÉ
Prix unitaire
2
$13.80
25
$13.11
50 +
$12.45
Emballage standard du fournisseur
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
Older Equivalent
MBKKB-2-5-DIO/O-U
MBKKB-2-5-DIO/O-U
VIEW PRODUCT

Tools/3D Models
