2906223 by phoenix contact
Image is representational - see mfr. specs

2906223

Phoenix Contact

The 2906223 is a pre-assembled relay module with a push-in connection, featuring a 2 PDT contact type and a 12 V DC input voltage. ...

Fiche technique
RoHS Compliant
Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 2906223 is a pre-assembled relay module consisting of a relay base, power contact relay, plug-in display/suppressor module, and retaining bracket. It operates with a nominal input voltage of 12 V DC and features two PDT (Double Pole Double Throw) contacts made from AgNi material. The module supports a maximum switching voltage of 250 V AC/DC and a limiting continuous current of 8 A. Key performance characteristics include a typical response time of 8 ms and a release time of 10 ms. Designed for a wide operating temperature range from -40°C to 70°C, its push-in connection technology facilitates easy installation in various industrial applications.

Search Keywords: 2906223

SPÉCIFICATION

Product Attribute
Attribute Value
Select Attribute
Products found: 0
fournisseur:
Phoenix Contact
Référence:
2906223
Alias/AKA:
2906223
Unité de mesure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
AC Coil Voltage:
N/A

EN STOCK: 177

Peut être expédié immédiatement

Manufacturer Stock: 316   Peut expédier 5/18/26

Commande min Quantitè: 3

DÉLAI DE L'USINE 5 Weeks Peut expédier 6/8/26

PRICE (USD)

QTÉ
Prix unitaire
3
$11.89
10 +
$11.29
Emballage standard du fournisseur
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

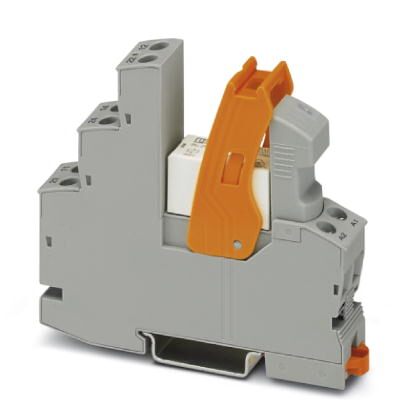

Older Equivalent
2908501
2908501
VIEW PRODUCT

Tools/3D Models

ressources

ACCESSOIRES

FBS-2-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: blue

FBS-2-6-GY

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: gray

CLIPFIX-35

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

FBS-2-6

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: red

MPS-IH-WH

Insulating Sleeve, MPS-IH WH Series | Phoenix Contact 0201663

MPS-IH-BK

Insulating sleeve - color: black

MPS-MT

Test plugs - with solder connection up to 1 mm² conductor cross section - color: gray

MPS-IH-BU

Insulating sleeve - color: blue

MPS-IH-YE

Insulating sleeve - color: yellow

MPS-IH-GN

Insulating sleeve - color: green

MPS-IH-GY

Insulating sleeve - color: gray

FBS-2-8-BU

Plug-in bridge - pitch: 8.2 mm - width: 14.7 mm - number of positions: 2 - color: blue

FBS-2-8

Plug-in bridge - pitch: 8.2 mm - width: 14.7 mm - number of positions: 2 - color: red

ZB-5-:UNBEDRUCKT

Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...

STP-5-2

Terminal Block Tag Carrier STP Series - STP5-2

ZB-15:UNBEDRUCKT

Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...

MPS-IH-RD

Insulating sleeve - color: red
