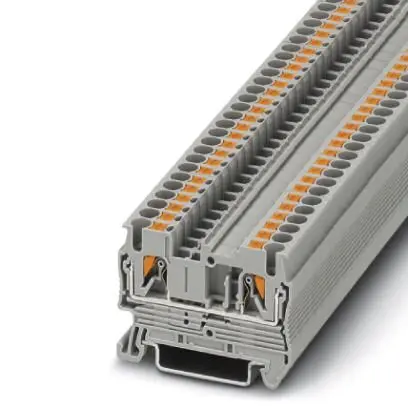

Image is representational - see mfr. specs

3209510

Feed-through terminal block - nom. voltage: 800 V - nominal current: 24 A - connection method: Push-in connection - number of connections: 2 - number of positions: 1 - cross section: 0.14 mm² - 4 mm² - AWG: 26 - 12 - width: 5.2 mm - height: 35.3 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 ...

Fiche technique

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The 3209510 is a Terminal Block Connector 2 Position Feed Through Gray 12-26 AWG. Phoenix Contact Push-In Technology DIN Rail Terminal Blocks Push-In technology allows wires to be connected easier and faster than ever before. Developed by Phoenix Contact, users can quickly connect ferruled wires by directly pushing them into the terminal, without the use of tools. Stranded wires can also be connected by depressing the orange actuator, and inserting the conductor. The wires are retained with a stainless steel leg spring which tightens under tension. This allows for the rapid connection of many wires while still keeping very high pullout forces.

Product Highlights:

Potential Applications:

Search Keywords: 3209510

SPÉCIFICATION

Product Attribute

Attribute Value

Select Attribute

Products found: 0

fournisseur:

Phoenix Contact

Référence:

3209510

Alias/AKA:

3209510

Unité de mesure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
