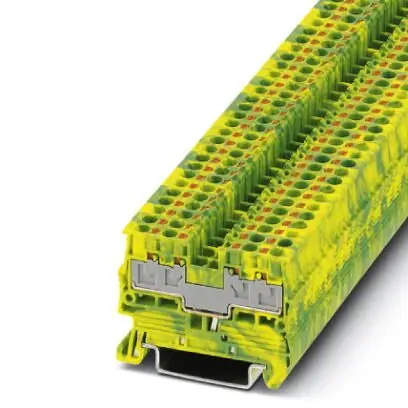

Image is representational - see mfr. specs

3209594

Ground modular terminal block - connection method: Push-in connection - number of connections: 4 - cross section: 0.14 mm² - 4 mm² - AWG: 26 - 12 - width: 5.2 mm - height: 35.3 mm - color: green-yellow - mounting type: NS 35/7,5 - NS 35/15 ...

Fiche technique

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

Phoenix Contact Push-In Technology DIN Rail Terminal Blocks Push-In technology allows wires to be connected easier and faster than ever before. Developed by Phoenix Contact, users can quickly connect ferruled wires by directly pushing them into the terminal, without the use of tools. Stranded wires can also be connected by depressing the orange actuator, and inserting the conductor. The wires are retained with a stainless steel leg spring which tightens under tension. This allows for the rapid connection of many wires while still keeping very high pullout forces. Type Ground, Earth Number of Positions 4 Number of Levels 1 Terminal - Width 5.2mm Termination Style Push In, Spring Wire Gauge or Range - AWG 12-26 AWG Wire Gauge or Range - mm² 0.14-4mm²

Product Highlights:

Potential Applications:

Search Keywords: 3209594

SPÉCIFICATION

Product Attribute

Attribute Value

Select Attribute

Products found: 0

fournisseur:

Phoenix Contact

Référence:

3209594

Alias/AKA:

3209594

Unité de mesure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99
