4-794680-4 by te connectivity / amp brand

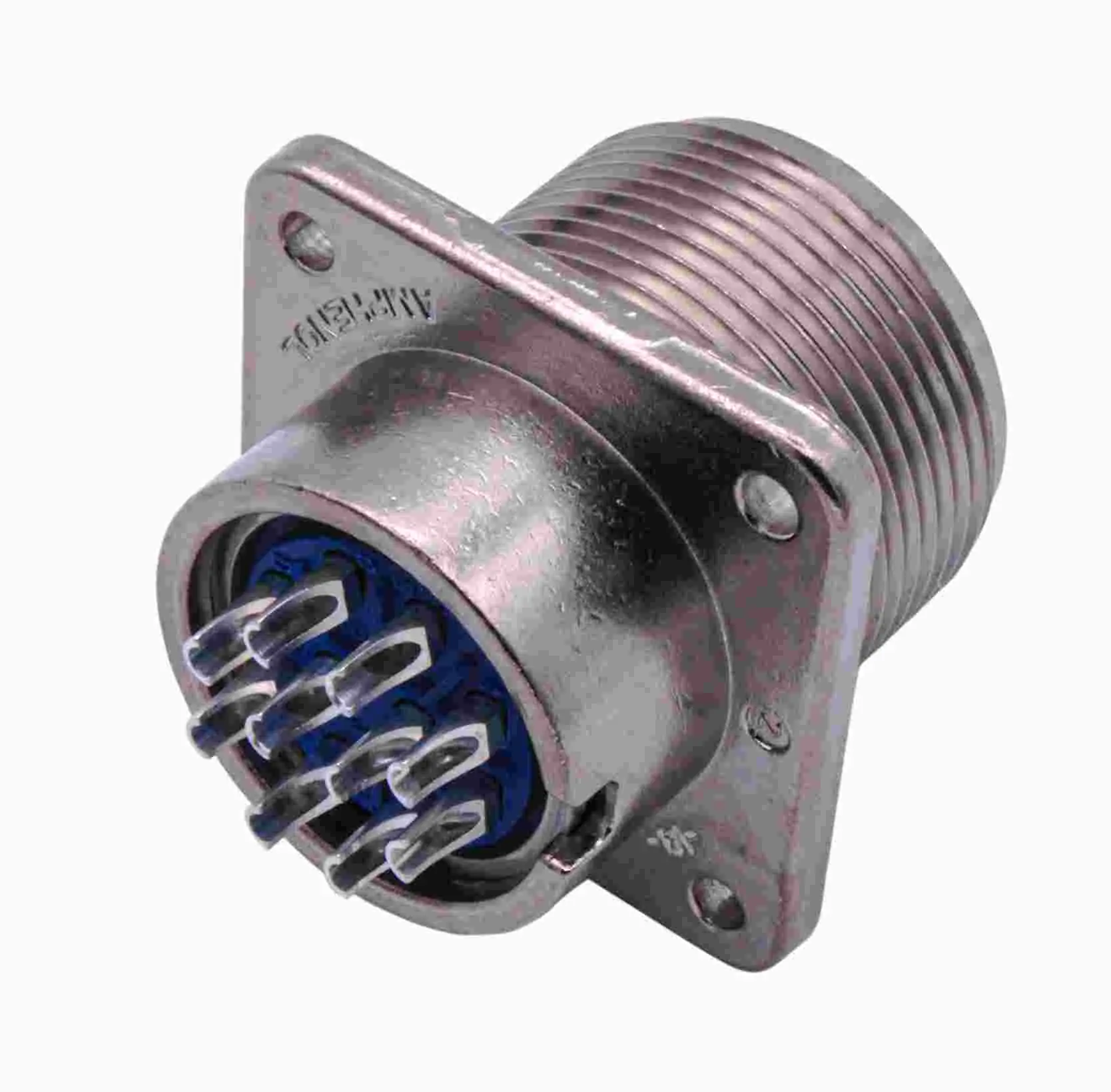

Image non contractuelle - consultez les spécifications du fabricant

4-794680-4

TE Connectivity / AMP Brand

14P MICRO MNL ASSY,VRT,THRU LF ...

Fiche technique
RoHS Compliant
TRAY Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Garantie du certificat de conformité

DESCRIPTION

4-794680-4 is a dual-row header connector designed for wire-to-board connections within TE Connectivity's Micro MATE-N-LOK 3mm connector system. This 14-position header features a 3mm (0.118 inch) centerline spacing and supports current ratings up to 5 Amps per line at 250 Volts AC/DC. The connector is available with 30 microinch gold plating, vertical angle orientation, and through-hole mounting configuration with metal hold-down options. It accommodates wire sizes from 22-18 AWG (0.3-0.9 mm²) with insulation diameters up to 2.79 mm, making it suitable for applications requiring reliable wire-to-board interconnections in compact spaces. This header is commonly used in appliance control systems, industrial equipment, and consumer electronics where space-efficient, high-reliability connections are essential.

Points forts du produit:

  • Header Assembly
  • Number of Positions = 14
  • Number of Rows = Dual
  • Vertical Mount Angle
  • Mount Style = Through-Hole

Search Keywords: 47946804

SPÉCIFICATION

Attribut du produit
Valeur de l'attribut
Sélectionner un attribut
Produits trouvés : 0
fournisseur:
TE Connectivity / AMP Brand
Référence:
4-794680-4
Unité de mesure:
Par Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
143
Package Type:
TRAY
Type:
Power
Orientation du corps:
Straight
Montage:
Through Hole
Genre:
HDR
Nombre de contacts:
14
Méthode de terminaison:
Solder
Tension maximale nominale:
250 VAC
Courant nominal maximal:
5/Contact A
Température de fonctionnement:
-40 to 105 °C

EN STOCK: 0

sur commande: 1 573   Peut expédier 9/7/26

Quantité minimale de commande pour qté en stock: 25

Quantité minimale de commande pour qté en rupture de stock: 394

DÉLAI DE L'USINE 19 Weeks

Prix (USD)

QTÉ
Prix unitaire
25
$2.80
100
$2.79
250
$2.78
394
$2.77
787
$1.71
1 180
$1.36
1 573 +
$1.33
Log in for special pricing Cliquez pour demander un devis Price Match Request

Outils/Modèles 3D

ressources

ACCESSOIRES

1-794617-4

14POS,MICRO MNL,RCPT HSG
