66108-5

TE Connectivity / AMP Brand

III+ SKT,26-24,30AU<10,STRIP ...

Fiche technique

RoHS Compliant

Reel Emballage

DESCRIPTION

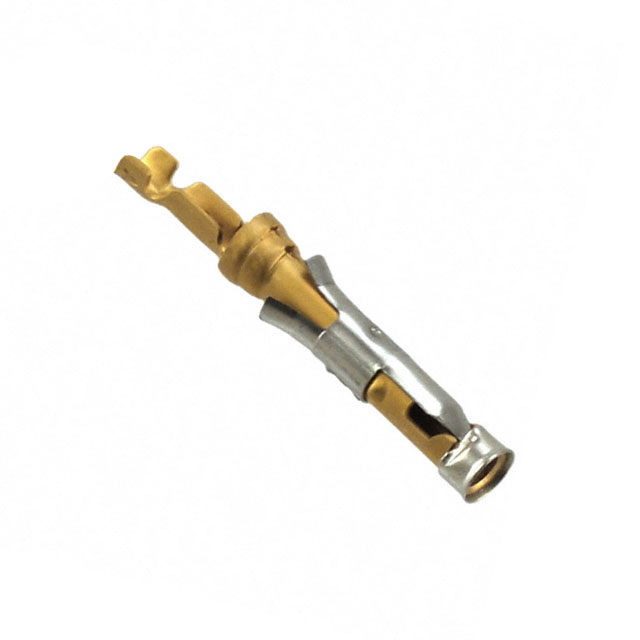

66108-5 is a socket assembly contact, .062 Type III+, designed for reliable wire termination in electronic applications. The contact features a brass body with a stainless steel spring and a brass ferrule with nickel flash. The mating end diameter is Ø1.52 mm [Ø.060] with a maximum outer diameter of Ø2.87 mm [Ø.113] and an overall length of 13.46±0.25 mm [.530±.010]. The contact is plated with 0.76µm minimum gold per MIL-G-45204 on the mating end for a length of 5.08 mm minimum, with a uniform gradient to 0.25µm minimum gold on the remainder, over 0.76µm minimum nickel per QQ-N-290. This socket assembly is suitable for applications requiring secure electrical connections with standard body finish.

Product Highlights:

Potential Applications:

Search Keywords: 661085

SPÉCIFICATION

Product Attribute

Attribute Value

Select Attribute

Products found: 0

fournisseur:

TE Connectivity / AMP Brand

Référence:

66108-5

Unité de mesure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
