57.403.7055.0 by wieland electric

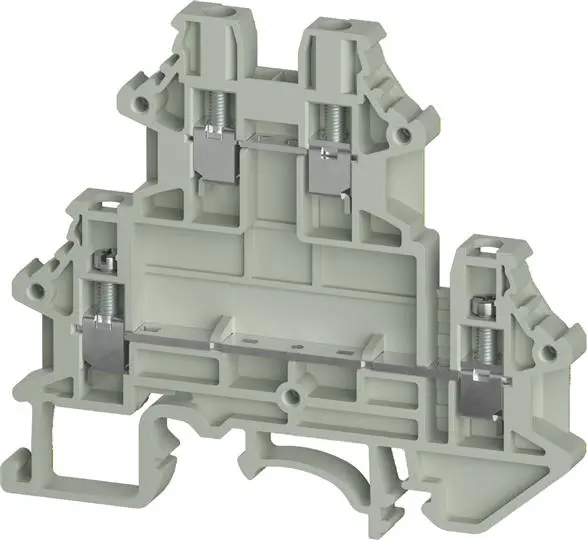

Image is representational - see mfr. specs

57.403.7055.0

Wieland Electric

Conn Feed-Through Terminal Block F 4 POS ST G DIN Rail/T DIN Rail 25A ...

Fiche technique
RoHS Compliant
Emballage
ACCESSOIRES
End of Life: Final orders must be placed by 05/01/2026
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The WKN 2.5 E/U (57.403.7055.0) is a multi-tier feed-through terminal block designed for DIN rail electrical installations with screw connection. It features upper and lower feed-through tiers that are connected, accommodating fine stranded wire from 0.5 to 2.5 mm² and solid wire from 0.5 to 4 mm², with a rated voltage of 500 V and 6 kV impulse rating at 24 A continuous current. The block has a compact width of 5 mm and wire strip length of 8 mm, meeting EN 60 947-7-1 and DIN VDE 0611 T1 standards. This terminal block is ideal for sensor/actuator applications, control systems, and industrial automation where space-saving, clear wire connections, and reliable electrical distribution are required.

Search Keywords: 5740370550

SPÉCIFICATION

Product Attribute
Attribute Value
Select Attribute
Products found: 0
fournisseur:
Wieland Electric
Référence:
57.403.7055.0
Unité de mesure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Body Orientation:
Straight
End of Life:
Final orders must be placed by 05/01/2026
  End of Life: Final orders must be placed by 05/01/2026

EN STOCK: 300

Peut être expédié immédiatement

Commande min Quantitè: 100

Multiple: 100

DÉLAI DE L'USINE 3 Weeks

PRICE (USD)

QTÉ
Prix unitaire
100
$3.793
300
$3.661
500
$3.492
1 000
$3.474
2 500
$3.457
5 000
$3.439
7 500
$3.422
10 000 +
$3.405
Emballage standard du fournisseur
