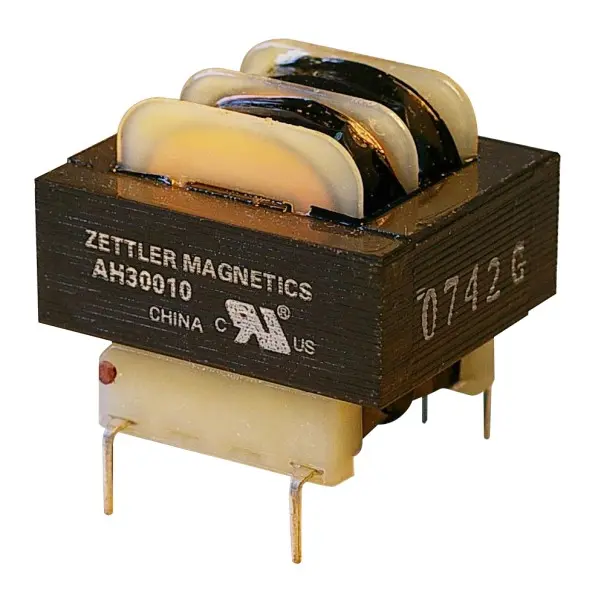

AH30020 by zettler magnetics
Image non contractuelle - consultez les spécifications du fabricant

AH30020

Zettler Magnetics

The AH30020 is a 2.5VA split-bobbin power transformer with a 115V primary and dual secondary windings. ...

Fiche technique
RoHS Compliant
TUBE Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Garantie du certificat de conformité

DESCRIPTION

The AH30020 is a 2.5VA power transformer from the AH300 series, designed for a 115V, 50/60Hz input. It features versatile dual secondary windings that can be connected in series to deliver 20Vac at 120mA, or in parallel to provide 10Vac at 240mA. This transformer incorporates a split-bobbin design for high isolation, a Class B insulation system, and a dielectric strength of 2500Vrms. As a UL-approved component, it is suitable for a wide variety of general power applications requiring reliable voltage conversion.

Search Keywords: AH30020

SPÉCIFICATION

Attribut du produit
Valeur de l'attribut
Sélectionner un attribut
Produits trouvés : 0
fournisseur:
Zettler Magnetics
Référence:
AH30020
Unité de mesure:
Par Each
RoHS:
Yes
HTS:
8504314035
COO:
VN
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
TUBE
Configuration primaire:
Single
Tension côté primaire:
115 V
Configuration secondaire:
Dual
Tension côté secondaire:
20,10 V
Courant côté secondaire:
120,240 mA
Puissance nominale:
2.5 VA
Montage:
Through Hole
Dimension:
35.5 x 30 x 30.5 mm

EN STOCK: 500

Expédition today, if you order in

Quantité minimale de commande pour qté en stock: 10

Quantité minimale de commande pour qté en rupture de stock: 510

Multiple: 10

DÉLAI DE L'USINE 16 Weeks

Prix (USD)

QTÉ
Prix unitaire
10
$9.09
100
$5.75
250
$5.30
510
$4.97
1 020
$4.89
1 530
$4.88
2 040 +
$4.87
Emballage standard du fournisseur
Log in for special pricing Cliquez pour demander un devis Price Match Request
