M22-2510305 by harwin

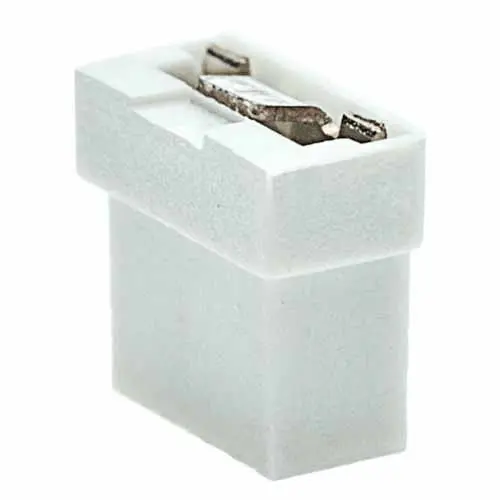

Image is representational - see mfr. specs

M22-2510305

Harwin

The M22-2510305 is a 2mm pitch, square pin connector from the M22 series designed for board-to-board interconnections. ...

Fiche technique
RoHS Compliant
Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The M22-2510305 is a board-to-board connector from the M22 series. It features a maximum current rating of 1A per contact, a maximum contact resistance of 20mΩ, and a minimum insulation resistance of 1,000MΩ. The component is rated for a dielectric withstanding voltage of 500V AC/DC and is designed to operate in a temperature range of -25°C to +85°C. With a mechanical durability of 300 operations, a maximum insertion force of 2.94N, and a minimum withdrawal force of 0.98N per contact, it provides a reliable interconnect solution for a variety of electronic applications.

Search Keywords: M222510305

SPÉCIFICATION

Product Attribute
Attribute Value
Select Attribute
Products found: 0
fournisseur:
Harwin
Référence:
M22-2510305
Unité de mesure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
TW
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000

EN STOCK: 4,000

Peut être expédié immédiatement

Commande min Quantitè: 1000

Multiple: 1000

DÉLAI DE L'USINE 11 Weeks

PRICE (USD)

QTÉ
Prix unitaire
1 000
$0.1246
3 000
$0.1170
5 000
$0.1120
8 000
$0.1103
25 000
$0.1058
50 000
$0.1017
100 000
$0.1014
150 000 +
$0.1003
Emballage standard du fournisseur
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

ressources
