EXD-AR-3 by honeywell

EXD-AR-3

Honeywell

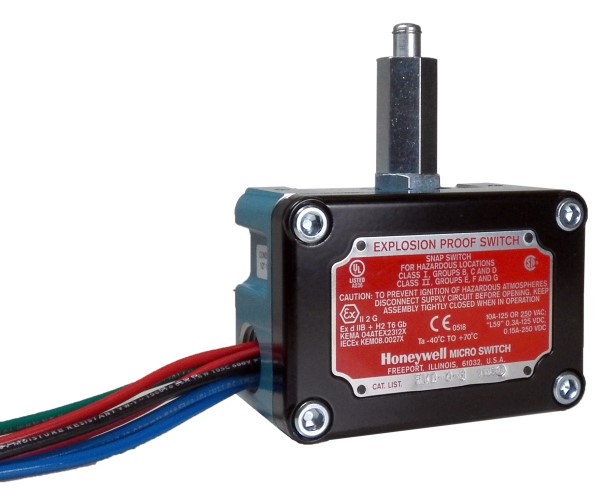

MICRO SWITCH™ Hazardous Location Switches: EX Series, Epoxy-Coated Aluminum Housing, Side Rotary, Momentary with Bronze Roller Lever, CW Rotation When Viewing Nameplate Side, Double Pole Double Throw (DPDT), 10 A 125 or 250 Vac, NEMA 1 Seal Rating, Operating Temperature: -40 °C to 70 °C [-40 °F to 158 °F], 1/2 - 14 NPT Conduit Termination Furnished with 914 mm [36 in] Leadwire, NEMA 7: Class I, Div. 1 & 2, Groups B, C & D; NEMA 9: Class II, Div. 1 & 2, Groups E, F, & G; Ex d IIB + H2 T6 Category II 2 G, Agency Approvals: ATEX (CE), CSA, UL, IEC Ex, INMETRO, External and Internal Ground Screw, Mounting Bracket and Hardware Packets Furnished Unassembled ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The HONEYWELL part EXD-AR-3 is a MICRO SWITCH„¢ Hazardous Location Switch designed for use in environments with potentially explosive atmospheres. It features an epoxy-coated aluminum housing and a side rotary design with a momentary action and bronze roller lever. The switch has a double pole double throw (DPDT) configuration and can handle a maximum current of 10 A at 125 or 250 Vac. It has a NEMA 1 seal rating and is designed to operate in temperatures ranging from -40 °C to 70 °C [-40 °F to 158 °F]. The switch is furnished with a 1/2 - 14 NPT conduit termination and comes with a 914 mm [36 in] leadwire. It has a NEMA 7 rating for use in Class I, Div. 1 & 2, Groups B, C & D hazardous locations and a NEMA 9 rating for use in Class II, Div. 1 & 2, Groups E, F, & G hazardous locations. The switch also meets the Ex d IIB + H2 T6 Category II 2 G standard. The EXD-AR-3 switch is approved by several agencies including ATEX (CE), CSA, UL, IEC Ex, and INMETRO. It comes with an external and internal ground screw, as well as a mounting bracket and hardware packets, which are furnished unassembled. This hazardous location switch is a reliable and durable choice for applications in demanding environments.

Product Highlights:

  • NEMA 1, 7, and 9
  • Compact, rugged housing
  • Up to 20 amp capacity
  • Ample wiring space
  • Mounts from four sides
  • Roller arms adjustable through 360 degrees
  • Non-sparking actuators
  • Captive cover screws
  • UL listed, file #E14274
  • CSA certified, file #LR57324
  • ATEX approved, file #KEMA 04ATEX2312 X
  • Grounding screw

Potential Applications:

  • Control valves and actuators
  • Petro-chemical plants
  • Conveyors
  • Material handling

Search Keywords: EXDAR3

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
EXD-AR-3
RoHS:
Yes
HTS:
8536509065
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Explosion Proof
Actuator Style:
Side Rotary with Roller Lever
Pole Throw Configuration:
DPDT
Switch Configuration:
N.O./N.C.
Operating Force:
6.67 N
Maximum Current Rating:
0.3@125VDC A
Terminal Type:
Wire Lead
NEMA Standard as Enclosure Rating:
1, 7, 9
Body Orientation:
Right Angle

IN STOCK: 4

Ships today, if you order in

On Order: 25   can ship 12/15/25

Factory Lead-Time 21 Weeks
